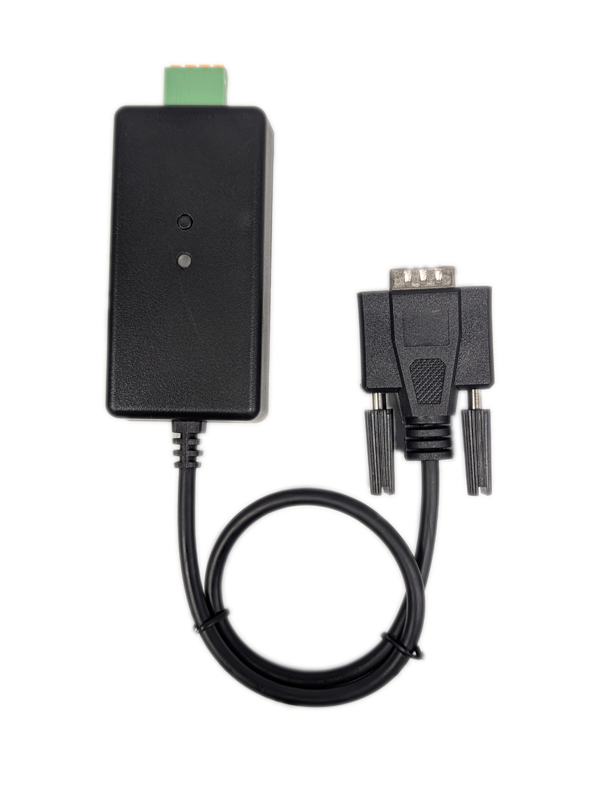

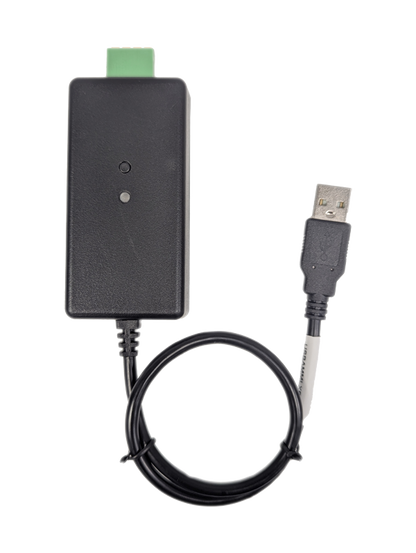

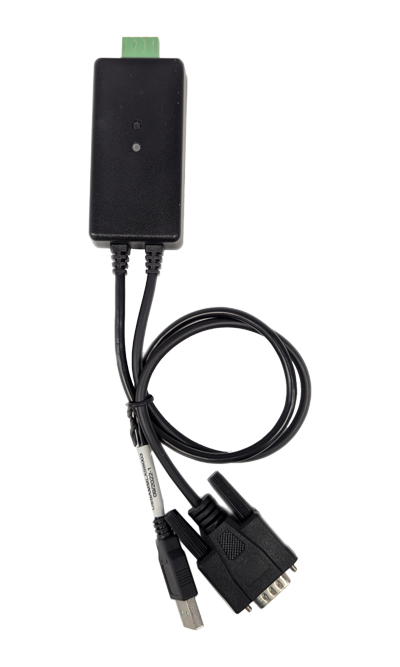

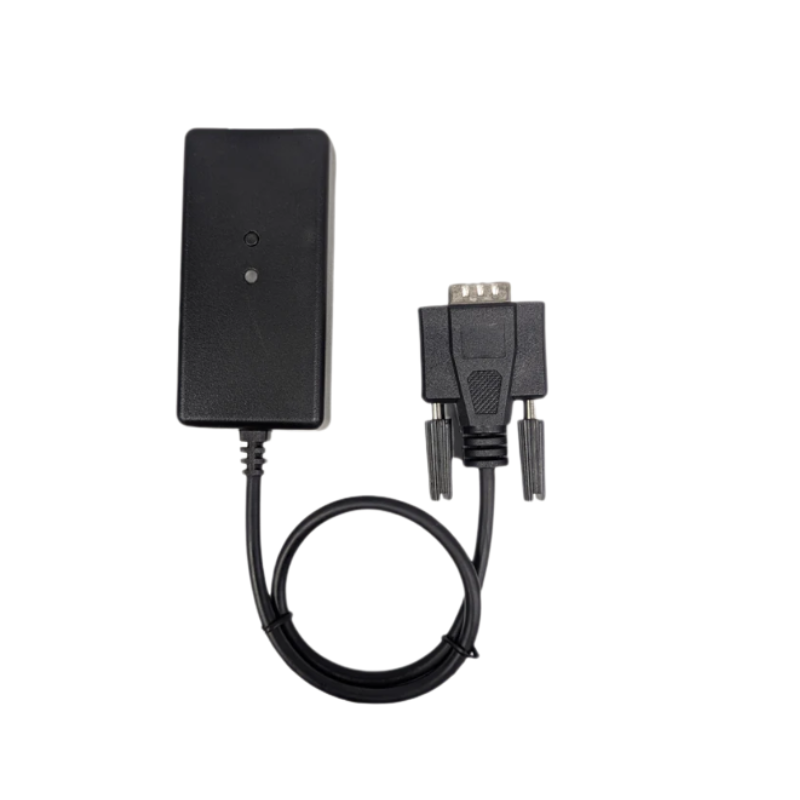

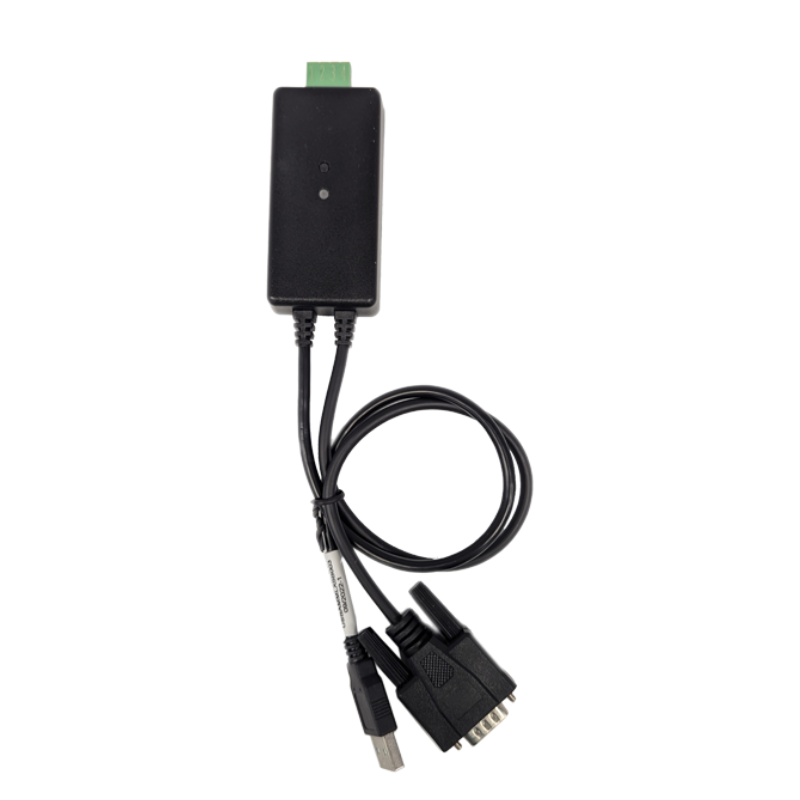

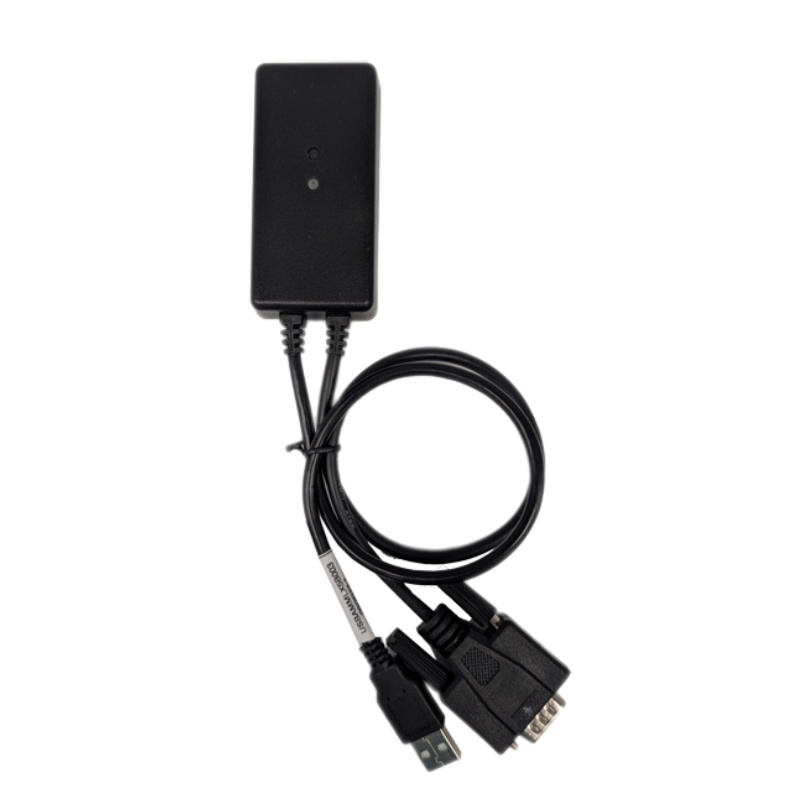

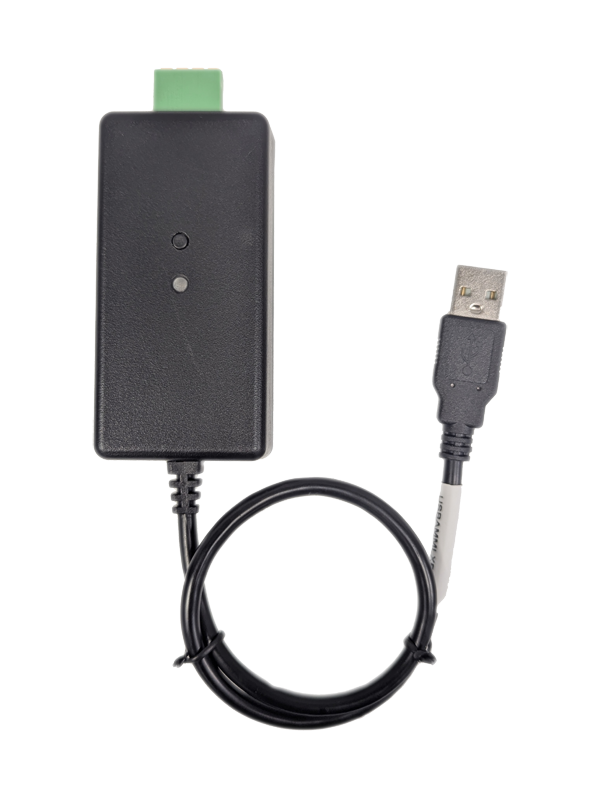

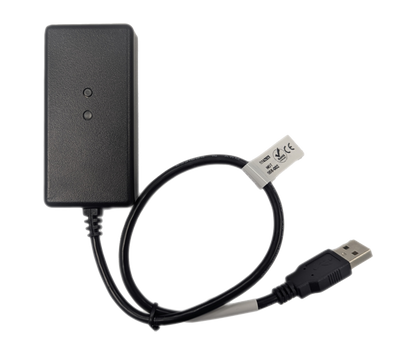

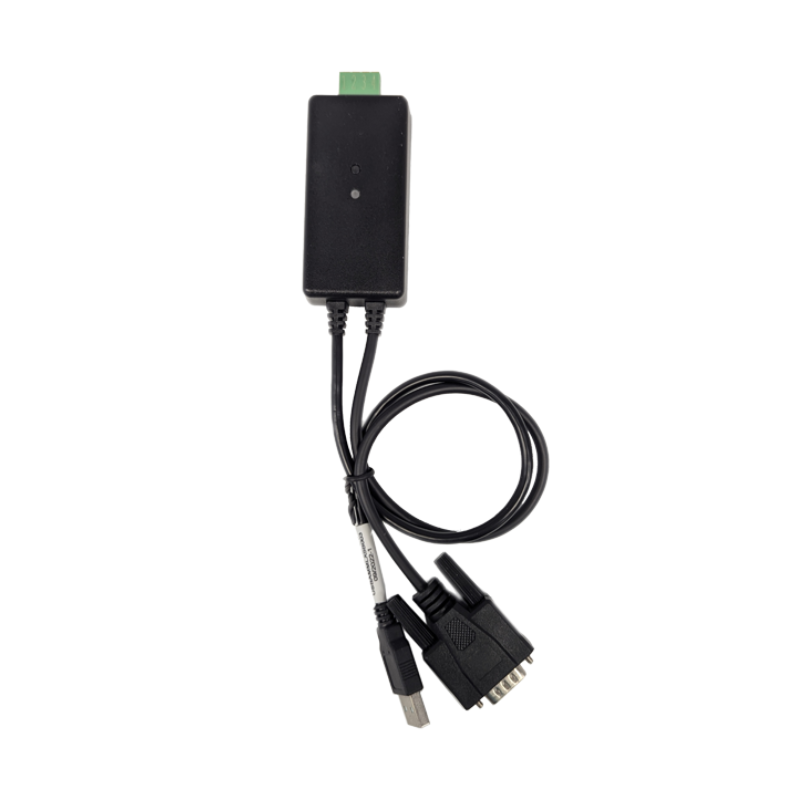

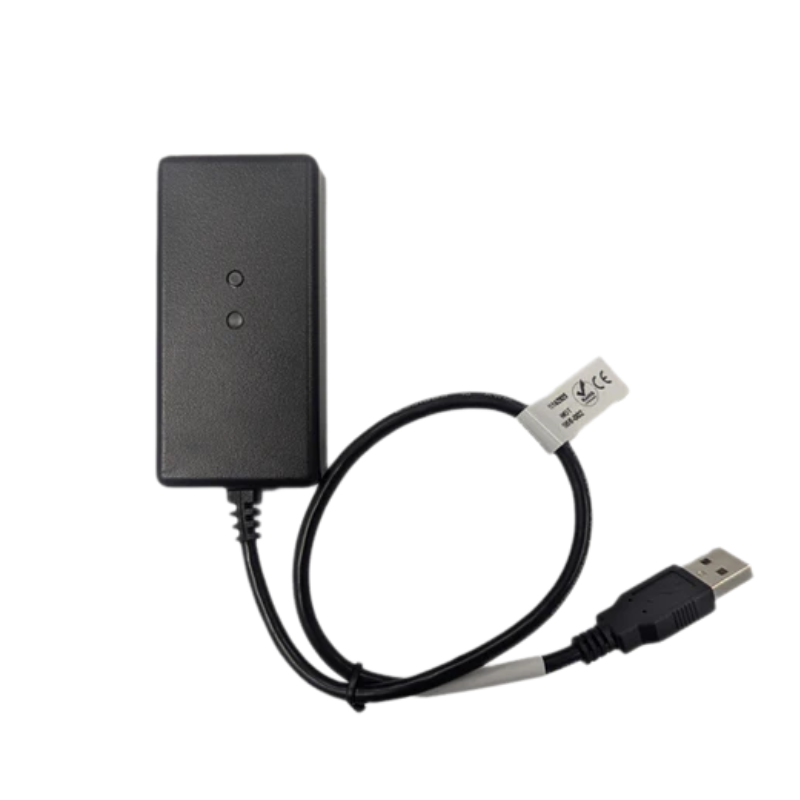

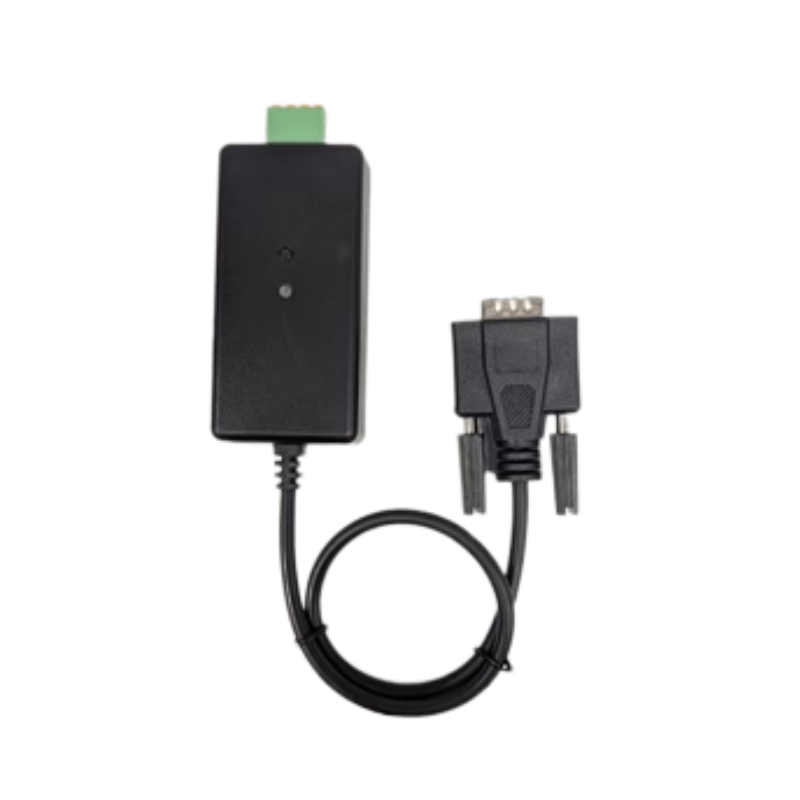

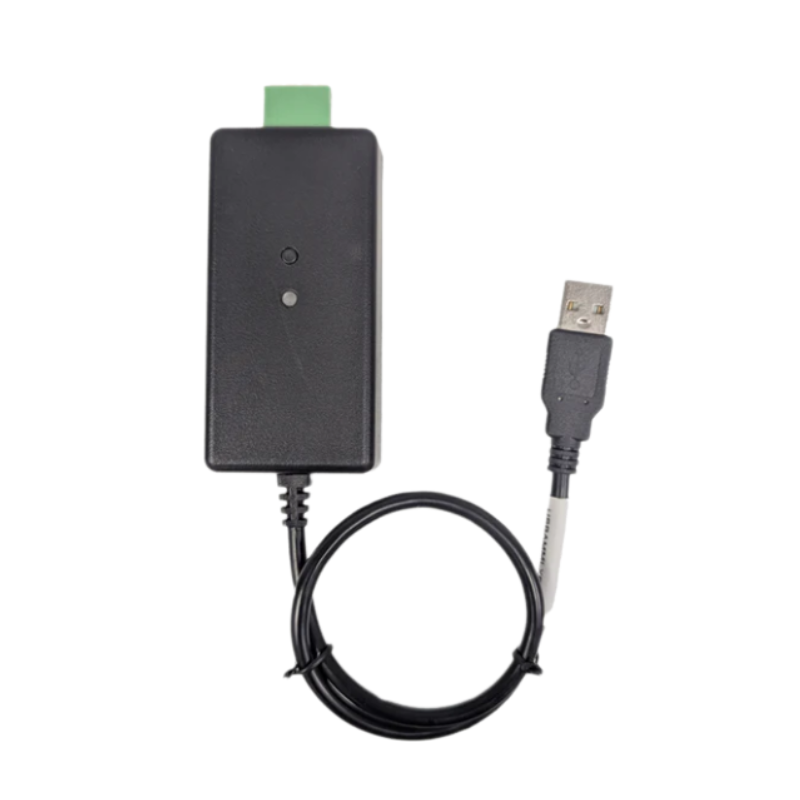

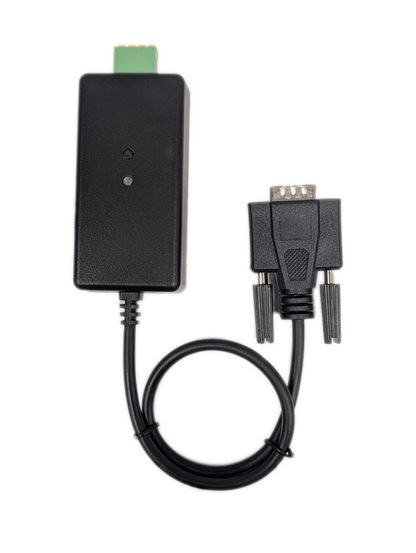

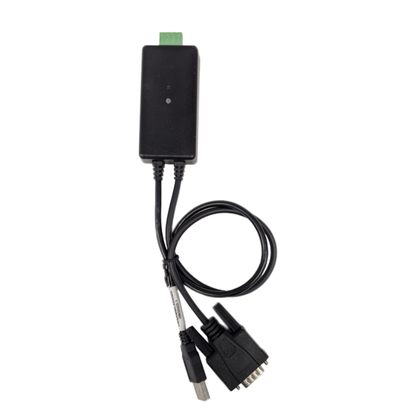

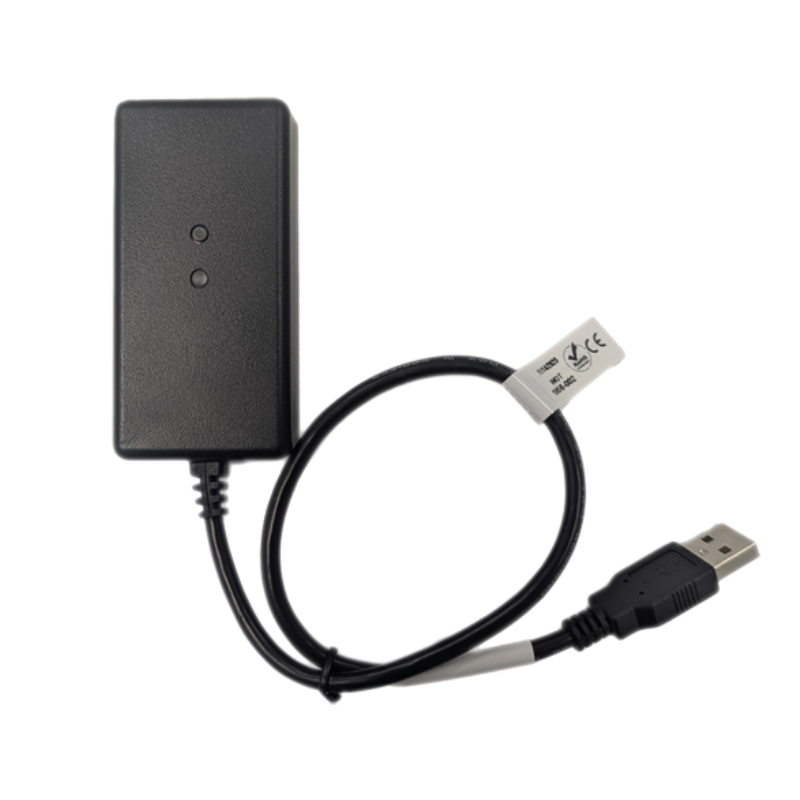

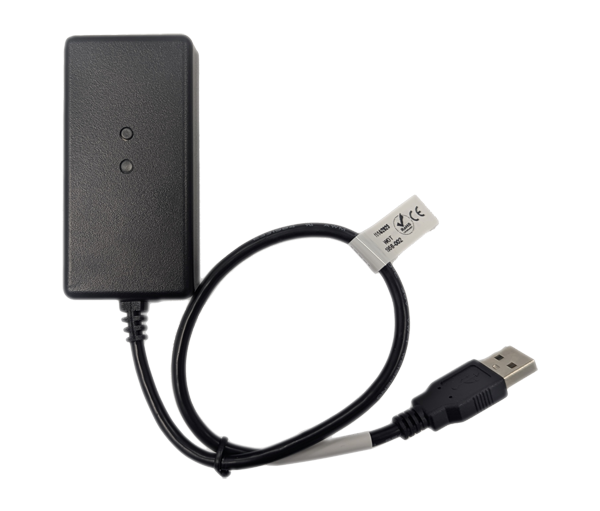

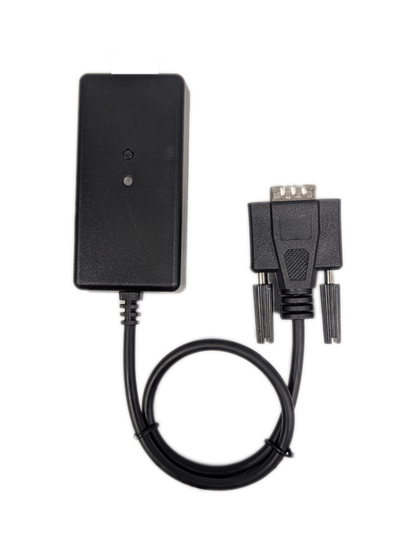

Serial to Bluetooth and WiFi bridge

Converts wired serial communication (RS232 or USB Virtual COM Port) into wireless Bluetooth or Wi-Fi communication.

Supports serial-to-Wi-Fi communication using TCP and UDP protocols.

Supports Bluetooth Classic SPP in both Master and Slave modes.

Supports BLE/SPP Server-Client communication.

Supports Bluetooth HID Keyboard functionality.

In BLE/SPP mode, two paired SBW100 devices can establish seamless wire-replacement communication.

Allows a button press on an SBW100 Master device to control a digital output on a paired SBW100 Slave device.

Powered directly from a USB or Serial port with no external power supply required.

Supports selectable Bluetooth keyboard languages, including:

• English

• French (Canada)

• French (France)

• Czech

• German

• Hungarian

• Italian

• Japanese

• Spanish

• Swedish

Supports COM port and RS232 baud rates from 1200 bps up to 256000 bps.

In Keyboard Mode, serial RS232 data from:

• Scales

• Barcode Readers

• RFID Readers

• Payment Terminals

• Other serial devices

can be entered directly into applications running on devices that support Bluetooth HID keyboards.

For platforms that do not support Bluetooth HID keyboards, one SBW100 in SPP Master mode can pair with a BK100 Bluetooth-to-Keyboard Converter to provide seamless Serial-to-HID keyboard communication over Bluetooth.

In Wi-Fi Mode, two paired SBW100 devices can establish seamless wire-replacement serial communication over Wi-Fi.

In Wi-Fi Mode, one SBW100 can pair with an SE100 Serial-to-Ethernet Converter to provide seamless Serial-to-HID keyboard communication over Wi-Fi.

In BLE/SPP Mode, two paired SBW100 devices can establish seamless wire-replacement communication, allowing a button press on one device to control a digital output on the paired device.
