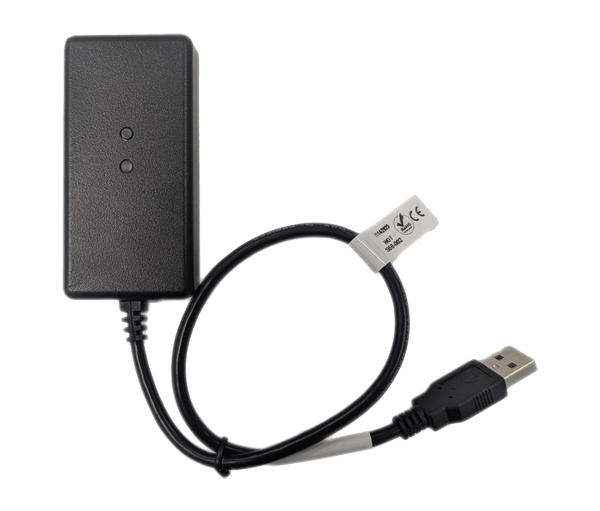

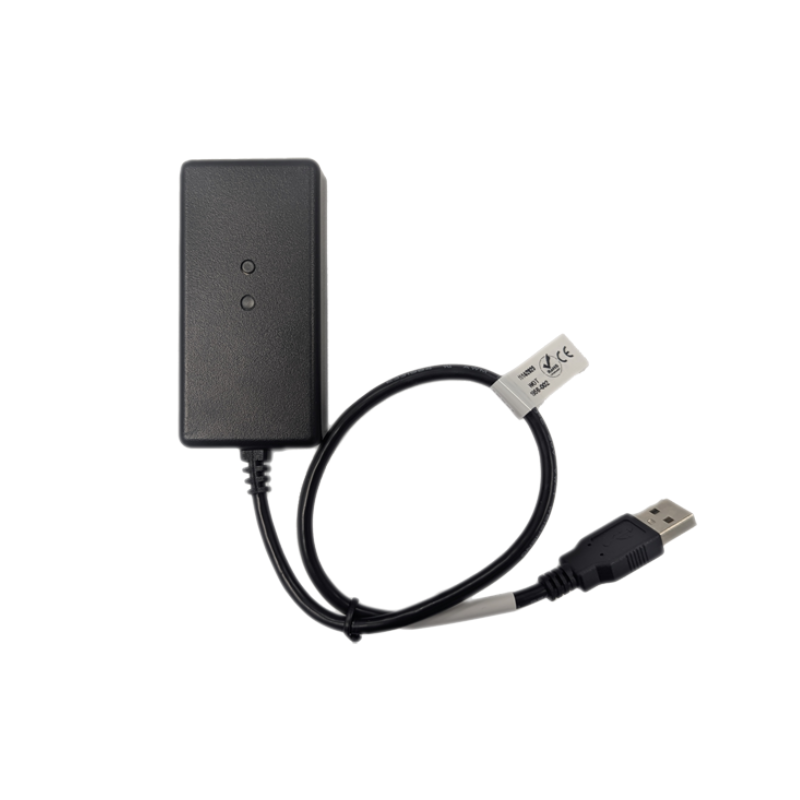

BLE and Wi-Fi Keyboard bridge ( KBW100 )

• Compact wireless HID (Human Interface Device) keyboard emulator designed to convert incoming character data into standard USB keyboard keystrokes.

• Supports Bluetooth Low Energy (BLE) connectivity using a GATT-based serial data transfer service with a 128-bit UUID.

• Supports Wi-Fi connectivity with:

  • TCP (stream) transport protocol

  • UDP (datagram) transport protocol

  • IPv4 networking

• USB 2.0 Full-Speed device implementing the standard USB HID Keyboard Class.

• Supports standard USB HID reports for:

  • Keyboard input

  • Media control functions

  • Mouse input

• Receives ASCII and UTF-8 encoded character streams or command packets through BLE or Wi-Fi interfaces.

• Translates incoming data into HID keyboard reports and injects them directly into the host operating system.

• Powered directly from the USB port with no external power supply required.

• Enumerates as a standard USB keyboard, requiring no additional drivers.

• Compatible with Windows, macOS, Linux, and other USB HID-compliant operating systems.
